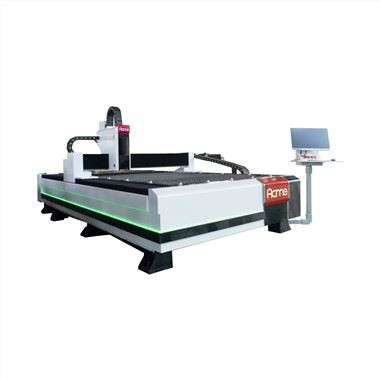

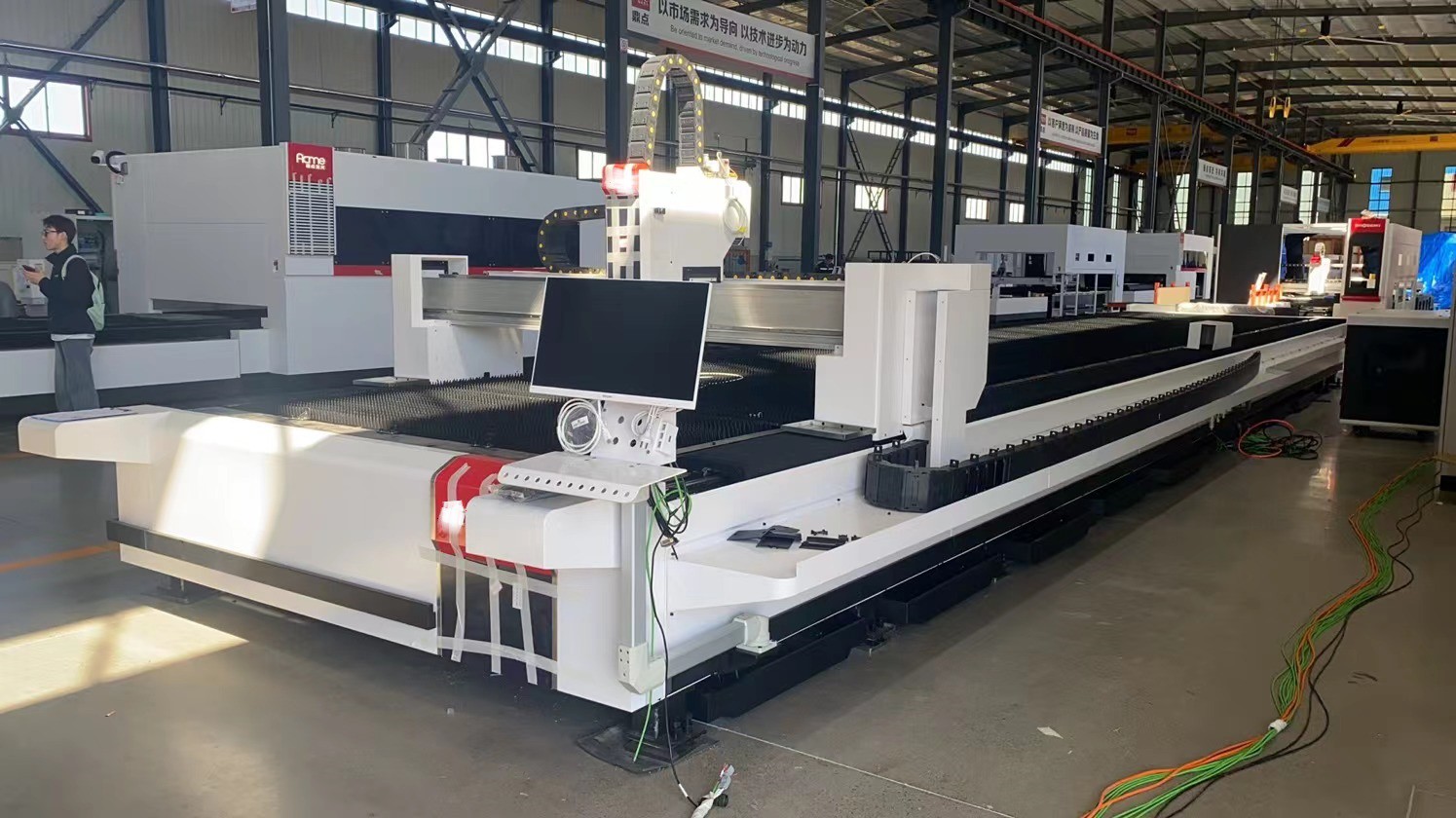

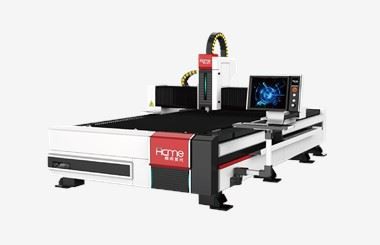

Sheet Laser Cutter

China FSCUT4000E Ethercat Cutting Control System

• Non-inductive perforation. Improve the efficiency of thin plate processing.

• Wuhenweilian. Batch cutting is easy.

• Disk centering. Automatically locate and process midpoints on circular sheets.

• One-stroke flying cut. Generate flying tangent lines based on arbitrary graphics to improve overall processing efficiency.

• Scan the code to read the picture. Quickly import drawings with a single swipe.

• Envelopes follow borders. Walking borders for non-rectangular panels.

MAX Laser Source

• Excellent Material Processing Performance. High speed in thin sheet cutting & Strong capability in thick material processing.
• Compact Design, Maintenance Free. Highly integrated system with modular design & Easy maintenance significantly reduce TCO.
• Smaller Size with Higher Stability. >60% reduction in volume & Higher flexibility when integrated into system.
• High Level Vertical Integration. All key components are designed and produced in house & Strict quality control, high consistency and reliability.

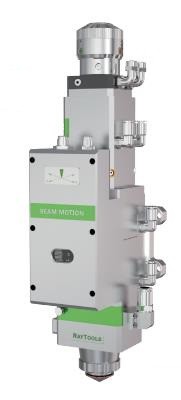

Raytools BM110 Auto-Focus Laser Head

• High speed servo collimation zoom.
• The three protective lenses are tightly sealed against dust.
• The independent module of the focus protection window is easy to replace.

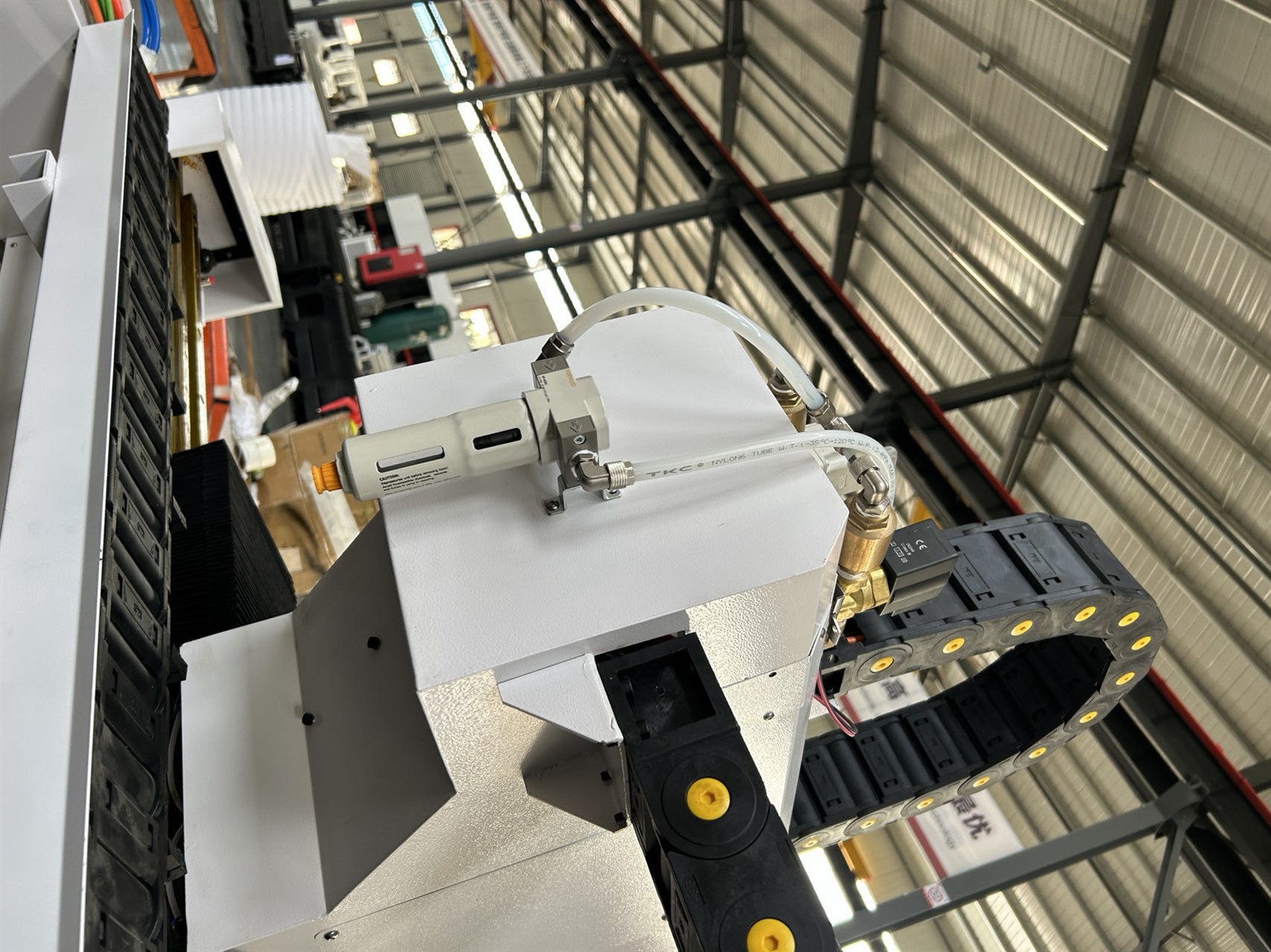

Air Filter for Laser Head

• To filter the air entering the laser head.

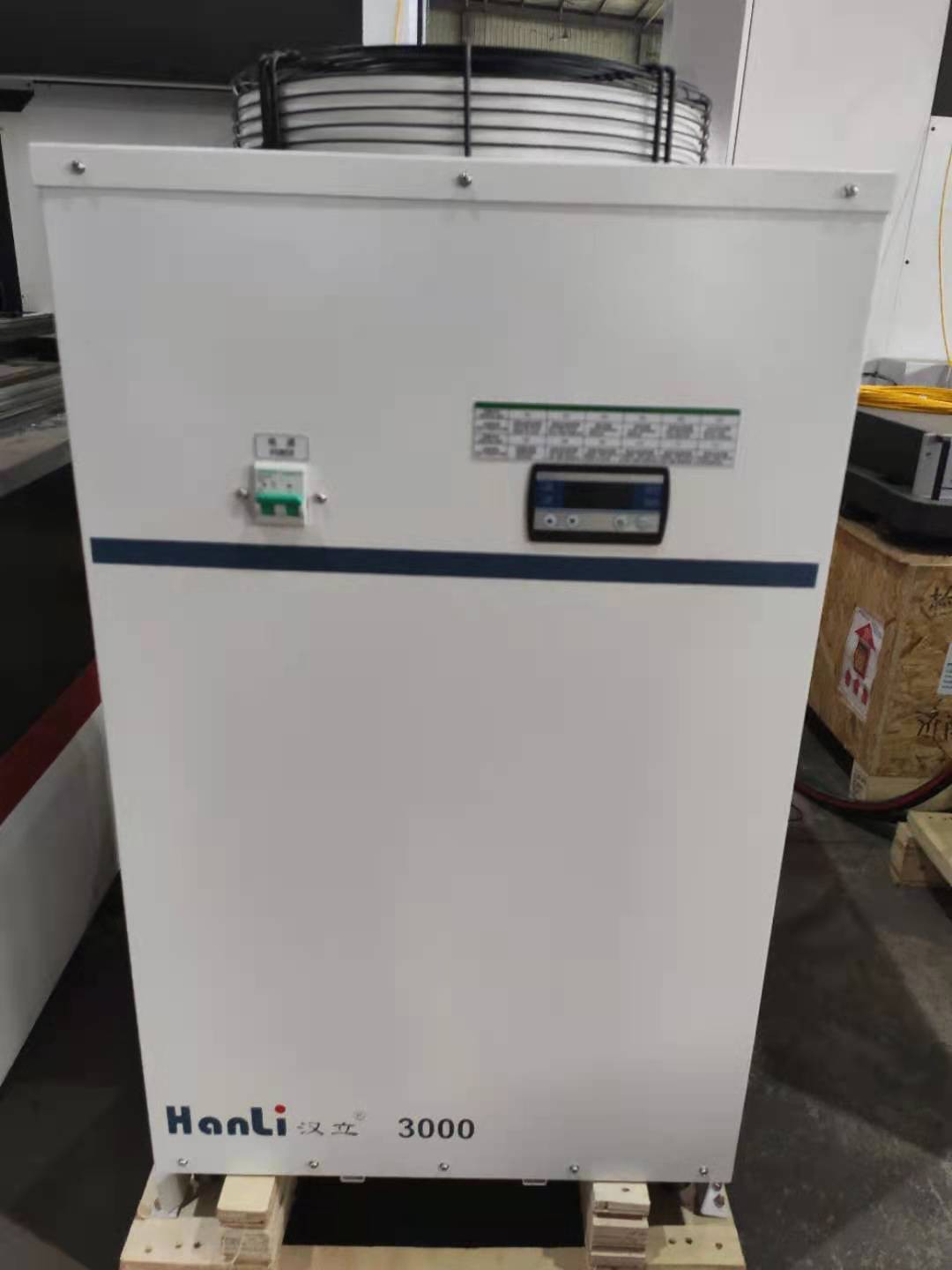

Hanli Water Chiller

Designed for industrial use. With dual-cooling function for laser source, laser head and other key components all get sufficient cooling to ensure smoothly and safe running of the machine.

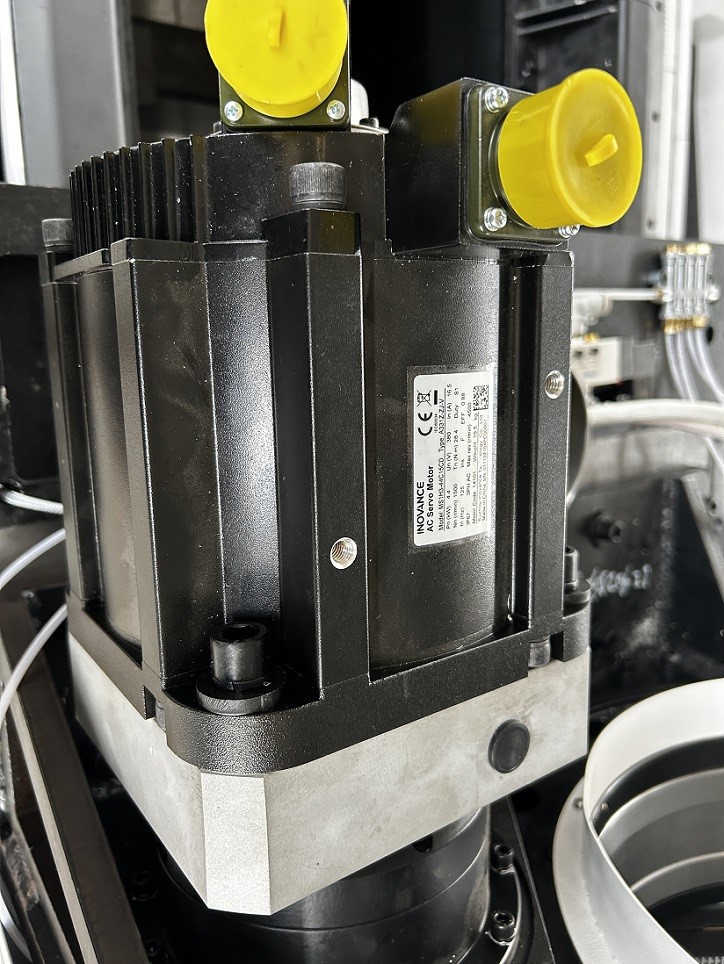

China Innovance Ethercat Servo Motor and Drive

Four sets of servo motor and drive in total. One for X axis, two for Y axis, one for Z axis.

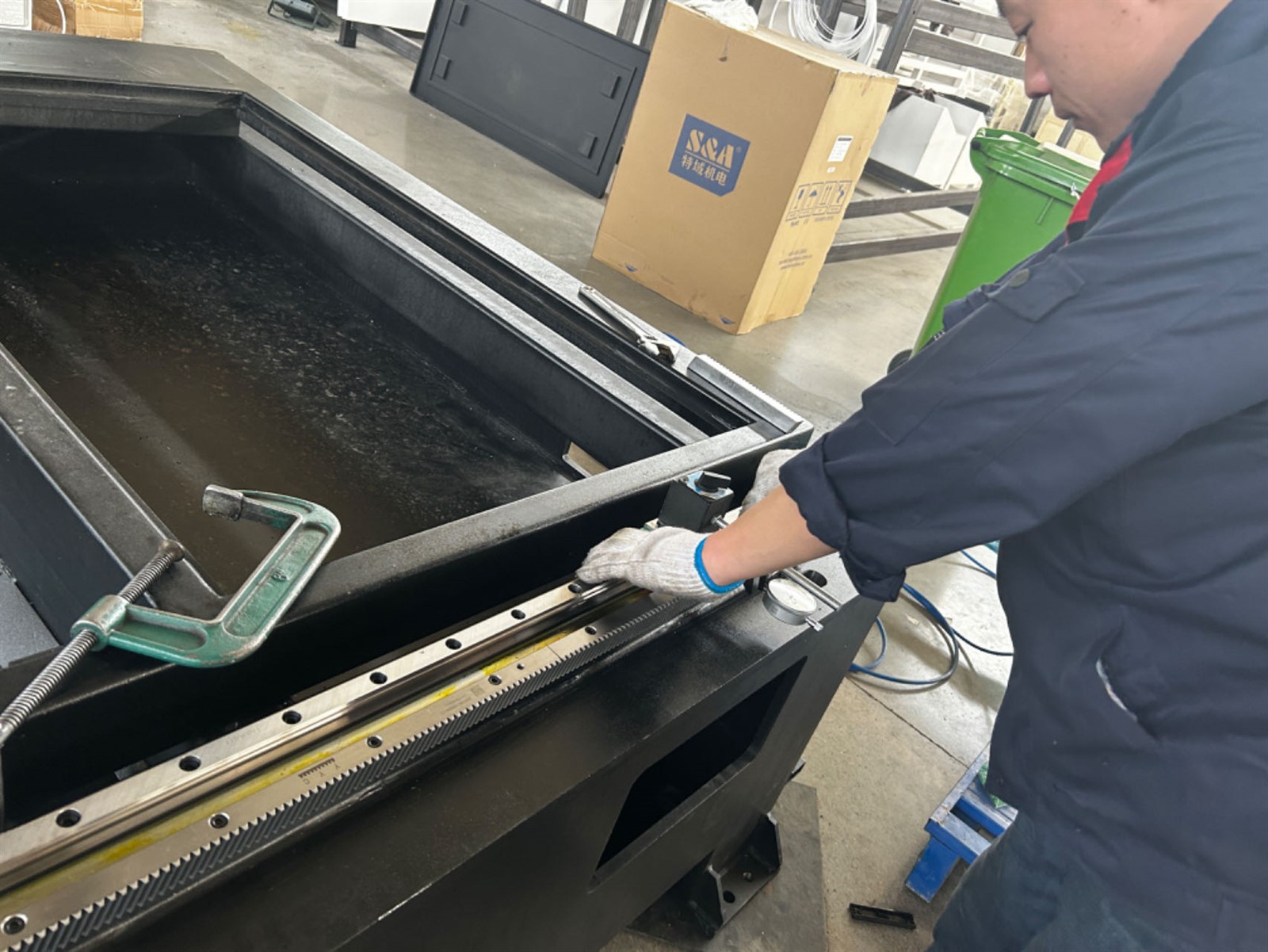

HIWIN Rack & YYC Rail

With dust cover it can keep high guiding precision.

3KW Air Fan

Connect air pipes at the bottom of the machine to protect client’s factory from dust and smoke.

Tooling Box
